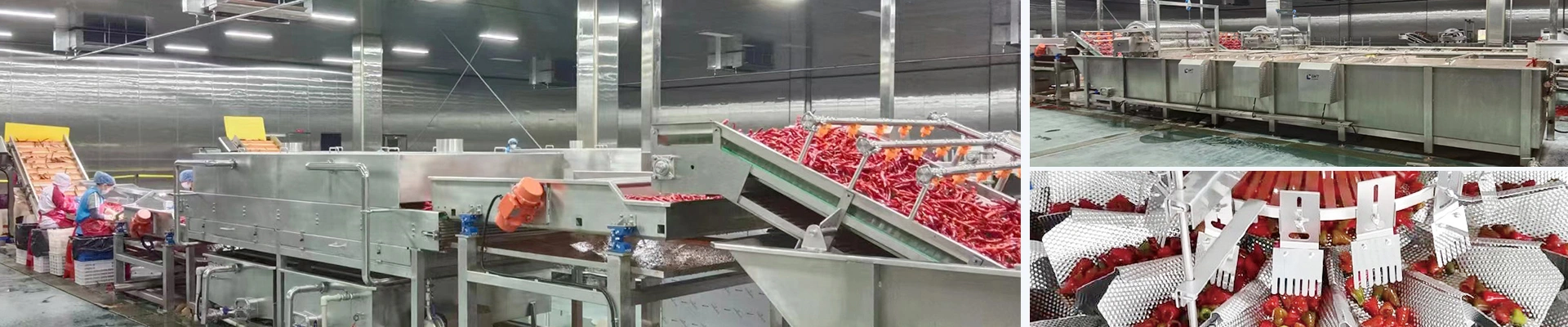

Canned Pickled Pepper Production Line
This automated pepper canning line is designed for whole canned peppers, chili sauce, roasted pepper products, pickled peppers, and other pepper-based foods. It can handle the full processing flow from fresh peppers to seasoned and pickled pepper products, with packaging options such as glass jars and tin cans.
With a modular design, the production line can be customized according to product characteristics, such as whole pepper filling, chili sauce filling, and oil chili filling, as well as capacity requirements and factory layout. It can be configured as a semi-automatic line or a fully automatic high-speed line.
| Entry-level | Standard | High-speed | |
|---|---|---|---|
| Capacity | 500–1,500 bottles/h | 1,500–6,000 bottles/h | 6,000–15,000 bottles/h |
| Filling heads | 1–4 heads | 4–8 heads | 8–16 heads |
| Filling range | 50–500g | 100–1,000g | 100–3,000g |
| Filling accuracy | ±2%–3% | ±1%–2% | ±1% |
| Applicable can / bottle types | Mainly round cans / bottles | Round, square, and irregular cans / bottles | Compatible with all can types, including irregular containers |
| Applicable products | Chili sauce, chopped chili | Whole peppers, pickled peppers, chili sauce | All types of canned pepper products |
| Sealing method | Manual / semi-automatic screw capping | Automatic vacuum capping / can seaming | High-speed vacuum can seaming / screw capping |
| Equipment material | SUS304 stainless steel | SUS304 / SUS316L | SUS316L, food and pharmaceutical grade |
-

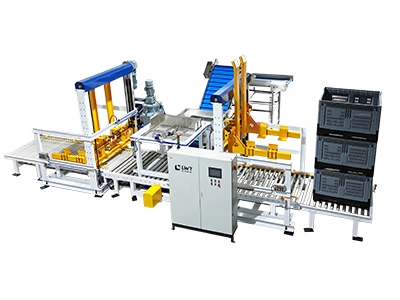

Crate Feeder – Automatic Crate Tipper – Crate CollectorAutomating crate feeding, dumping, and stacking to supply raw ingredients efficiently with minimal labor.
-
Magnetic Palletizer & DepalletizerInjecting steam to seal glass jars with vacuum tightness, preserving freshness and extending shelf life.
-
Empty Can RinserUsing magnetic positioning and high-pressure water spraying to automatically clean empty metal cans inside and out before filling.
-
Piston FillerDelivering high-precision volumetric dosing via servo control for thick pastes and liquid foods like corned beef or sauces.
-
Glass Bottle Vacuum Capping Machine (Steam Spraying)Vacuum sealing glass jars with steam spraying to ensure freshness and shelf stability.
-
Retort Crate LoaderAutomatically loading filled cans into retort baskets before sterilization and unloading them afterwards for seamless line flow.
-
Autoclaves & Sterilization RetortsProviding high-temperature thermal sterilization at ~121°C to extend canned food shelf life and satisfy strict safety standards.
-
Retort Crate UnloaderLoading filled containers into retort baskets before sterilization and unloading them afterwards automatically.
-
Air Knife Drying SystemBlowing off surface moisture from washed cans using ambient high-speed air knives to prepare them for labeling.
-
Wrap-Around LabelerApplying pressure-sensitive labels smoothly around round cans and bottles using servo-driven control for high-accuracy wrap-around labeling.
-
Case Erecting MachineAutomatically opening carton blanks, forming boxes, and sealing the bottom with tape for downstream case packing.
-
Servo Case PackerIntegrating product arranging, picking, and precision placement into cartons via servo-driven positioning for flexible, damage-free packing.
-
Case Sealing MachineFolding top flaps and applying adhesive tape to seal filled cartons securely for transport.
-
Gantry PalletizerStacking finished cases onto pallets systematically using heavy-duty automated gantry kinematics to optimize warehouse storage.
