Case Erector
Automated Case Erecting Machine
Automatically opening carton blanks, forming boxes, and sealing the bottom with tape for downstream case packing.

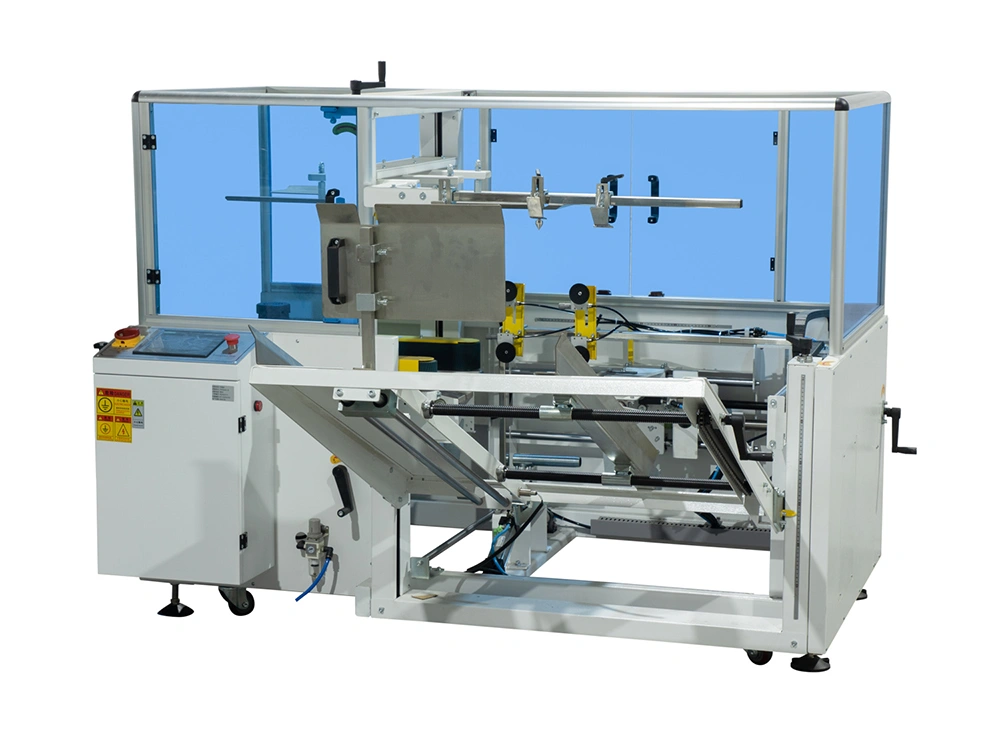

The automatic case erecting machine opens flat carton blanks, forms them into boxes, and folds the bottom flaps according to the required case forming method. After forming, the bottom is sealed with tape and the erected case is delivered to the case packing machine for the next packaging step.

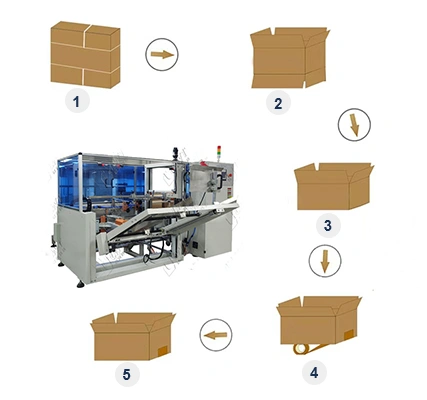

- 1 Carton blanks enter the carton magazine
- 2 Automatic case opening and forming
- 3 Automatic bottom flap folding
- 4 Bottom sealing with tape
- 5 Finished erected case output
| Forming and sealing speed | 8–12 cartons/min |
| Carton storage quantity | 100 pcs, 1000mm |
| Carton size | L200–450 × W150–400 × H100–400mm |
| Power supply | 110/220V, 50/60Hz, 1-phase, customizable |
| Applicable tape | 48/60/75mm, one tape width selected |
| Dimensions | L2000 × W1900 × H1450mm, depending on carton size |
| Machine weight | 450kg |

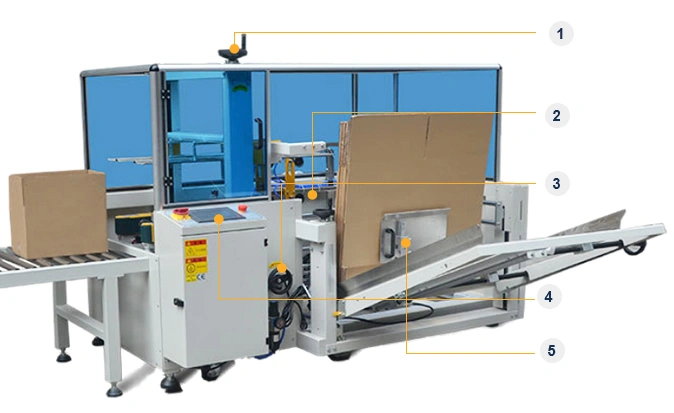

- 1 Height Adjustment Handle
- 2 Carton Chuck
- 3 Width Adjustment Handle
- 4 Operation Panel
- 5 Carton Magazine
-

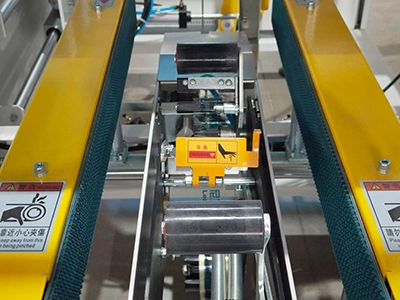

Quick Tape Replacement
Equipped with a protective door, the case erector allows tape to be replaced conveniently and safely when the door is opened.
-

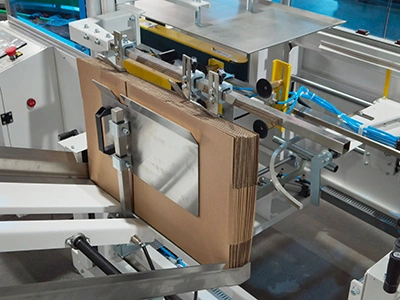

Automatic Latch Mechanism
It adopts a push-type carton board locking latch fitted on the material trough bracket for easy operation.
-

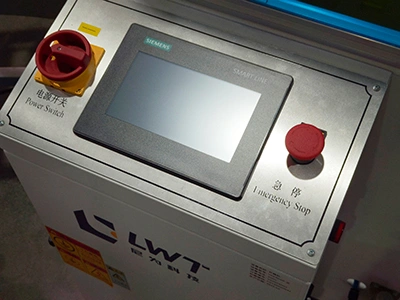

Siemens PLC control
The internal electrical circuit uses anti-interference technology and a Siemens control program for accurate positioning and long-term stable operation.
-

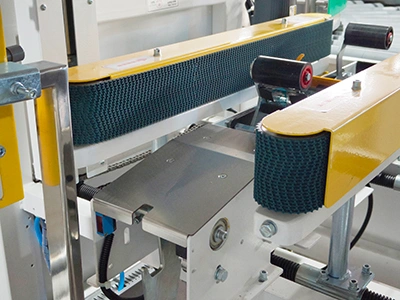

Durable conveyor belt
A wear-resistant conveyor belt with strong friction supports steady carton conveying.
-

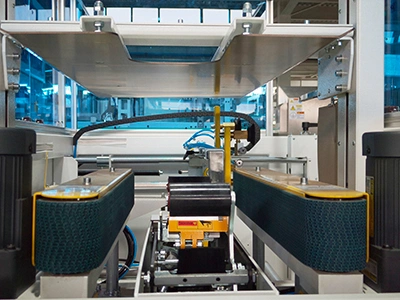

Automatic alarm
When the tape breaks or runs out, the alarm sounds automatically, allowing operators to replace or adjust the tape in time.
-

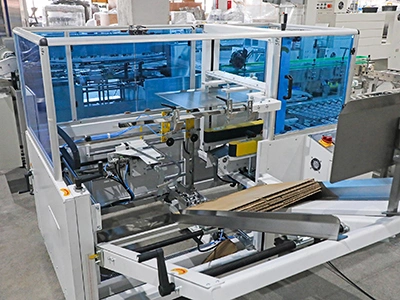

Customizable carton magazine
Horizontal or vertical carton magazines can be customized according to the packaging type.
-
Multiple carton sizesThe case erector can be customized according to carton size and packing method.
