Piston Filler
Delivering high-precision volumetric dosing via servo control for thick pastes and liquid foods like corned beef or sauces.
The piston filler is designed for multiple bottle specifications and uses servo control for high-accuracy filling up to ±0.5%. The machine is easy to operate, stable, and durable.
It supports direct cleaning, offers a high protection level, and uses core electrical components from international brands such as Siemens, Danfoss, and Schneider for reliable operation.
The piston filling machine is widely used for sauces, edible oil, juice drinks, water, alcoholic beverages, dairy products, and other canned or bottled products.

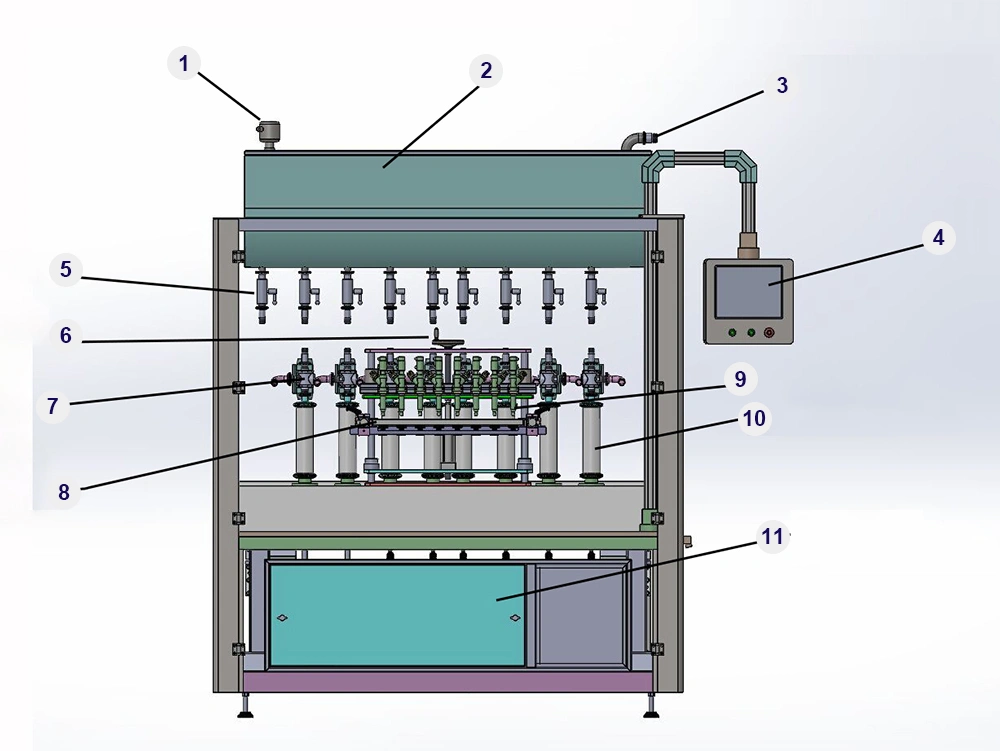

- 1 Liquid Level Sensor
- 2 Product Tank
- 3 Feed Valve

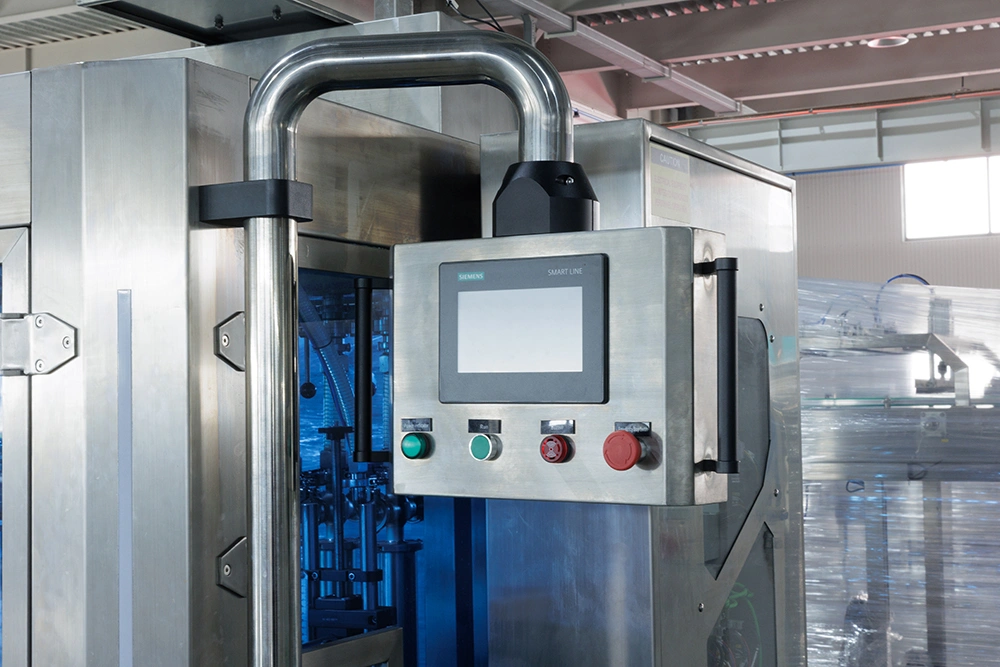

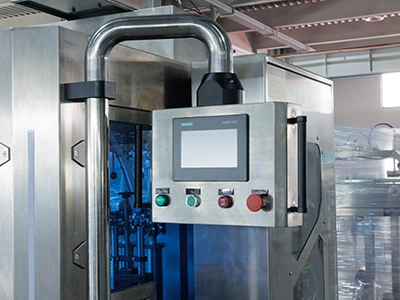

- 4 Touchscreen
- 5 Filling Valve
- 6 Lifting Platform
- 7 Three-Way Angle Seat Valve
- 8 Anti-Drip Device
- 9 Filling Head
- 10 Piston Cylinder
- 11 Electrical Control Panel
Applicable Filling Range: 10–60g, 30–100g, 50–250g, 100–500g, 200–1000g, 500–2500ml, 1000–5000ml
| Model | Air Consumption | Filling Accuracy | Power Supply | Dimensions (L × W × H) |
| |
120 L/ min | Liquid: ≤ ±0.5% Paste:<±1% | 3-Phase, 380 V, 50/60 Hz, 1.37 kW | 2200×1020×2250 mm |
| |
140 L/ min | Liquid: ≤ ±0.5% Paste:<±1% | 3-Phase, 380 V, 50/60 Hz, 1.69 kW | 2500×1020×2250 mm |
| |
160 L/min | Liquid: ≤ ±0.5% Paste:<±1% | 3-Phase, 380 V, 50/60 Hz, 2.07 kW | 2500×1020×2250 mm |
| |
280 L/min | Liquid: ≤ ±0.5% Paste:<±1% | 3-Phase, 380 V, 50/60 Hz, 2.82 kW | 3000×1020×2250 mm |
| |
300 L/min | Liquid: ≤ ±0.5% Paste:<±1% | 3-Phase, 380 V, 50/60 Hz, 2.82 kW | 3000×1020×2250 mm |
- Designed for multiple bottle types and material requirements, this filling machine uses a high-accuracy filling volume adjustment system with servo motor, PLC, and touchscreen control. Filling accuracy can reach ±0.5%–1%.
- The machine supports material barrel heating, mixing, and cleaning functions. Its horizontal design helps keep materials evenly mixed and is suitable for filling liquids and products with particles without causing damage.
- Made of 304 stainless steel, the machine is equipped with a transparent organic glass door cover for easy observation and cleaning. It also includes a dedicated drain outlet and cleaning control function, and can be rinsed directly with a water gun.

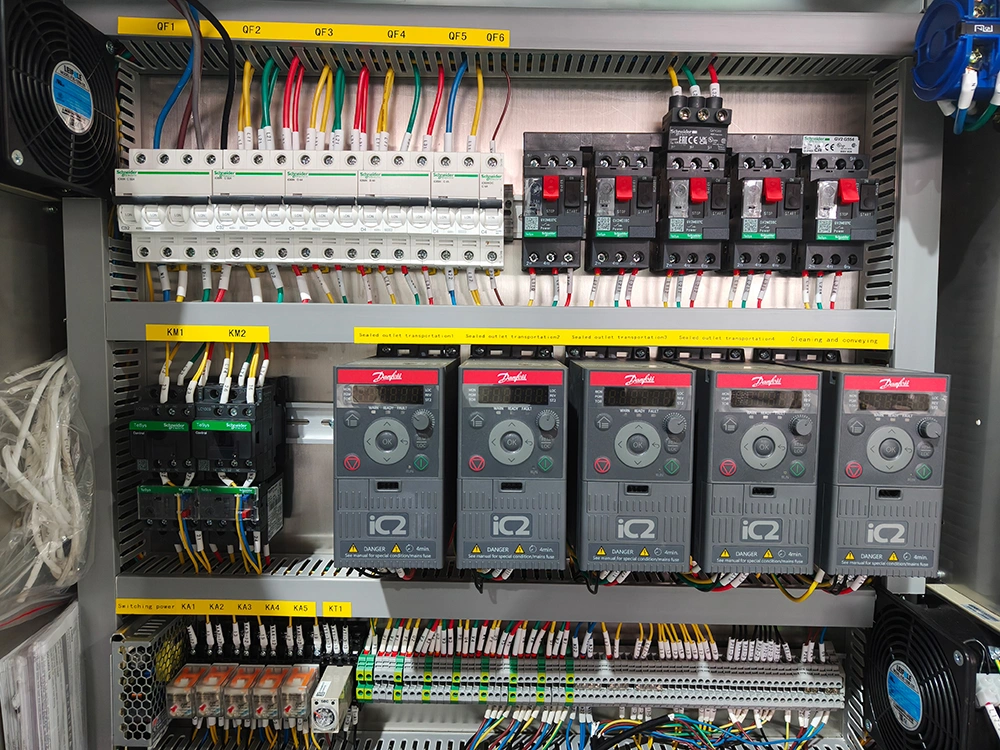

- Core electrical components include Siemens PLC, Danfoss frequency converter, and Schneider Electric parts for stable and reliable operation. The machine is easy to operate, with dedicated training and online after-sales support to support continuous production.
