Case Sealer
Automatic Carton Sealing Machine
Folding top flaps and applying adhesive tape to seal filled cartons securely for transport.

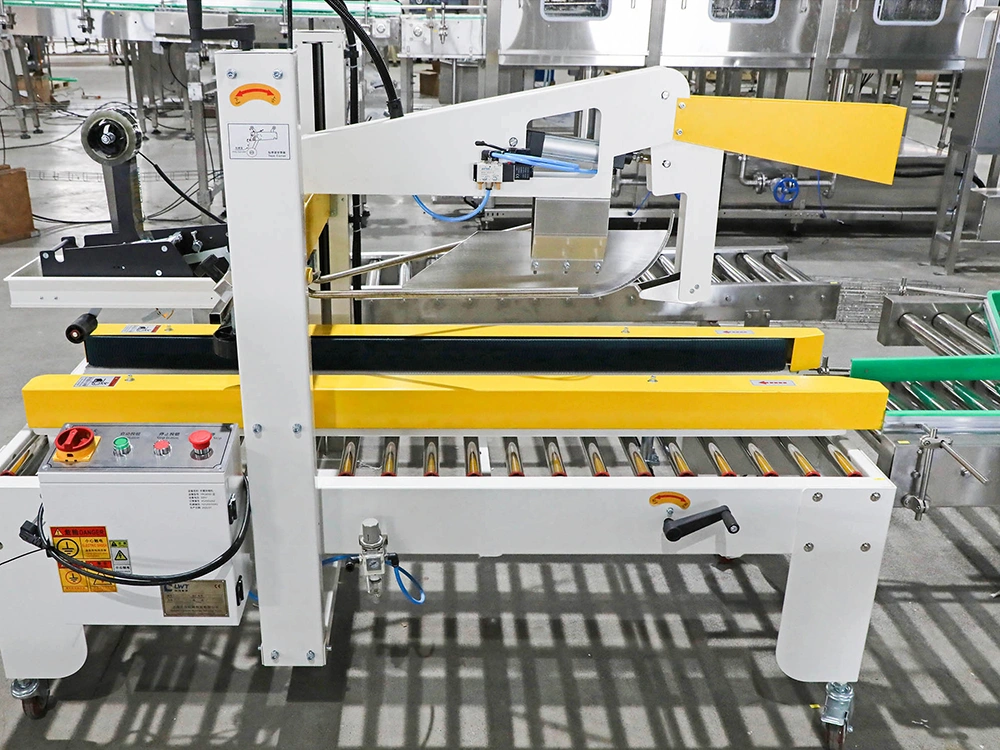

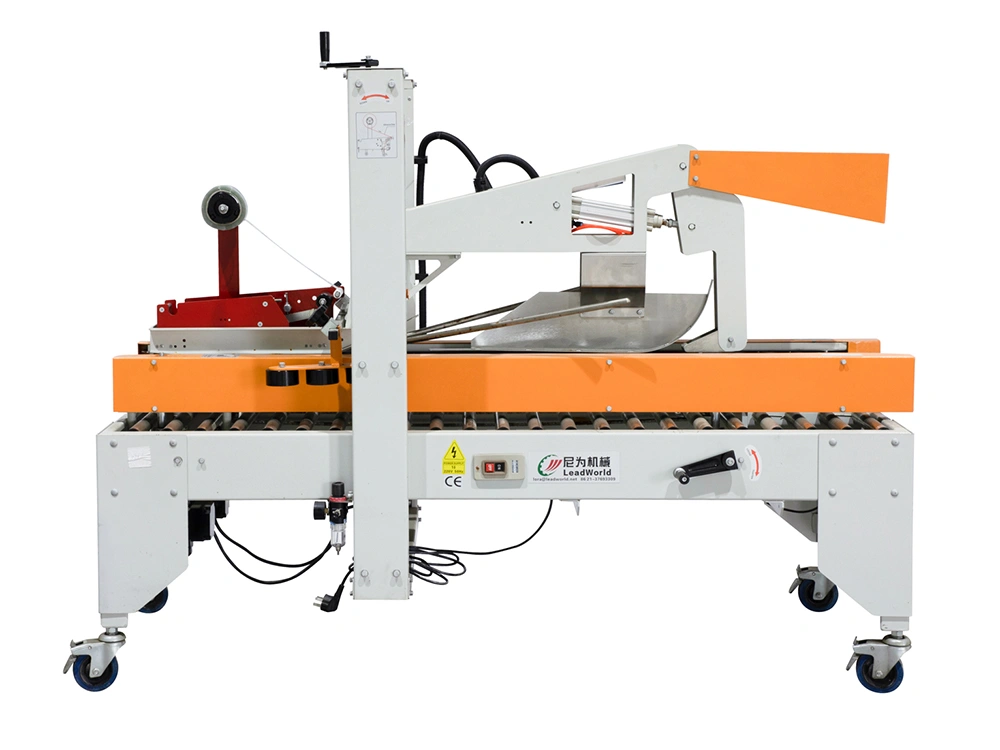

The automatic carton sealing machine folds the top flaps of the carton and applies tape to the top and bottom in one continuous process. The tape sealing is smooth, neat, and firm, helping keep cartons securely closed for storage and transport.
The case sealer can operate as a standalone machine or be integrated into an automated packaging line. It is widely used in food, beverage, tobacco, daily chemical, automotive, cable, electronics, and other industries.

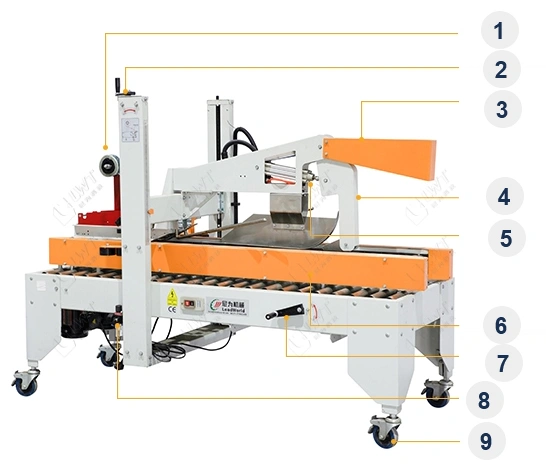

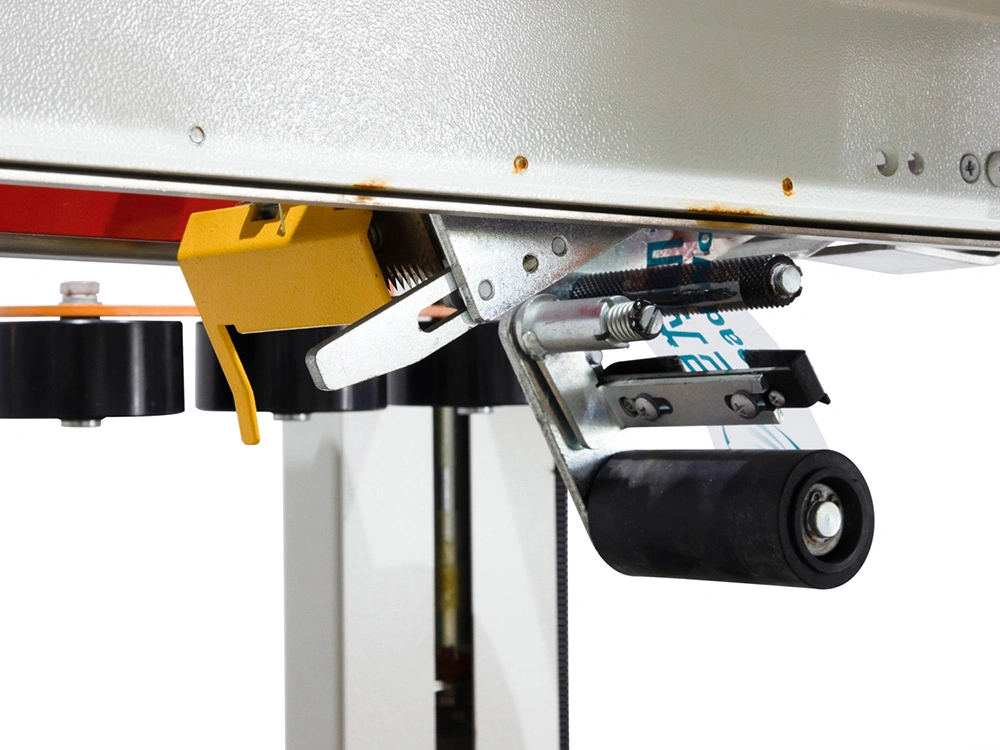

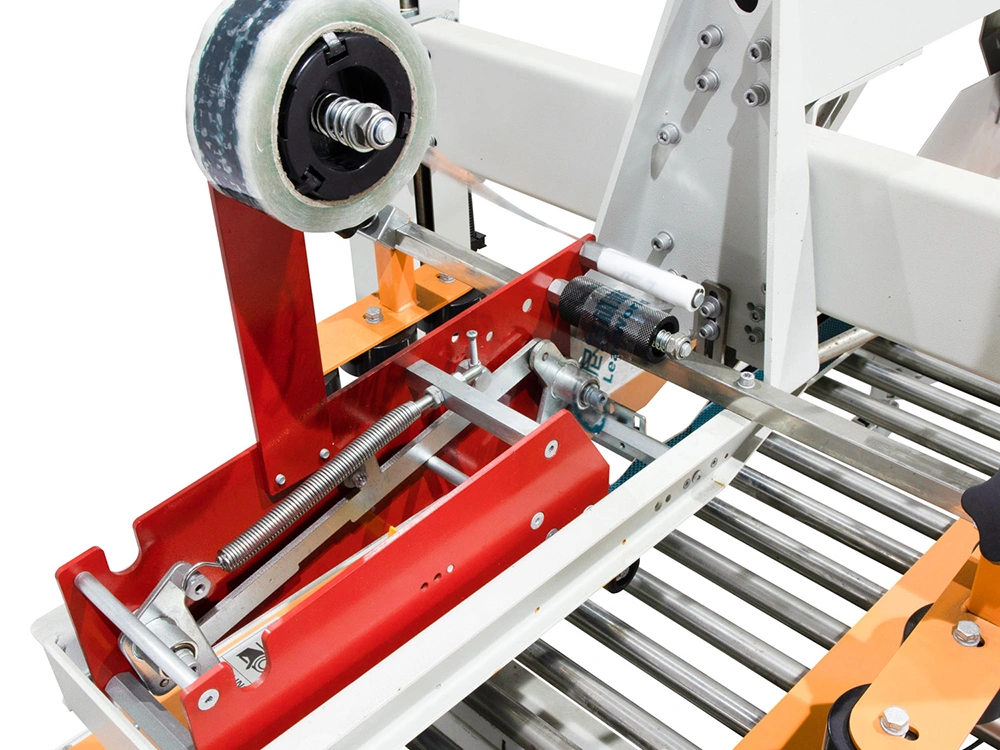

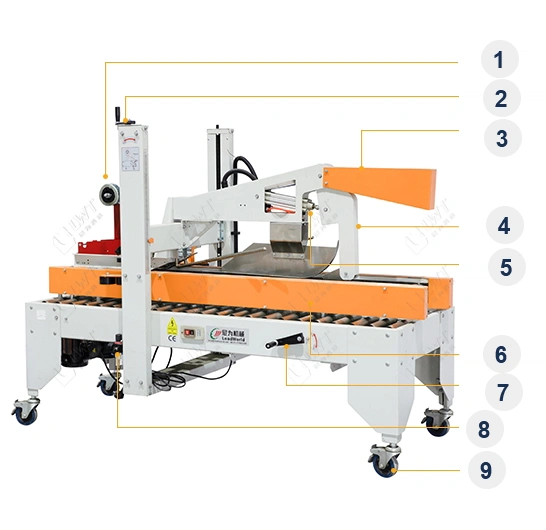

- 1 Tape Head
- 2 Carton Height Adjustment Lever

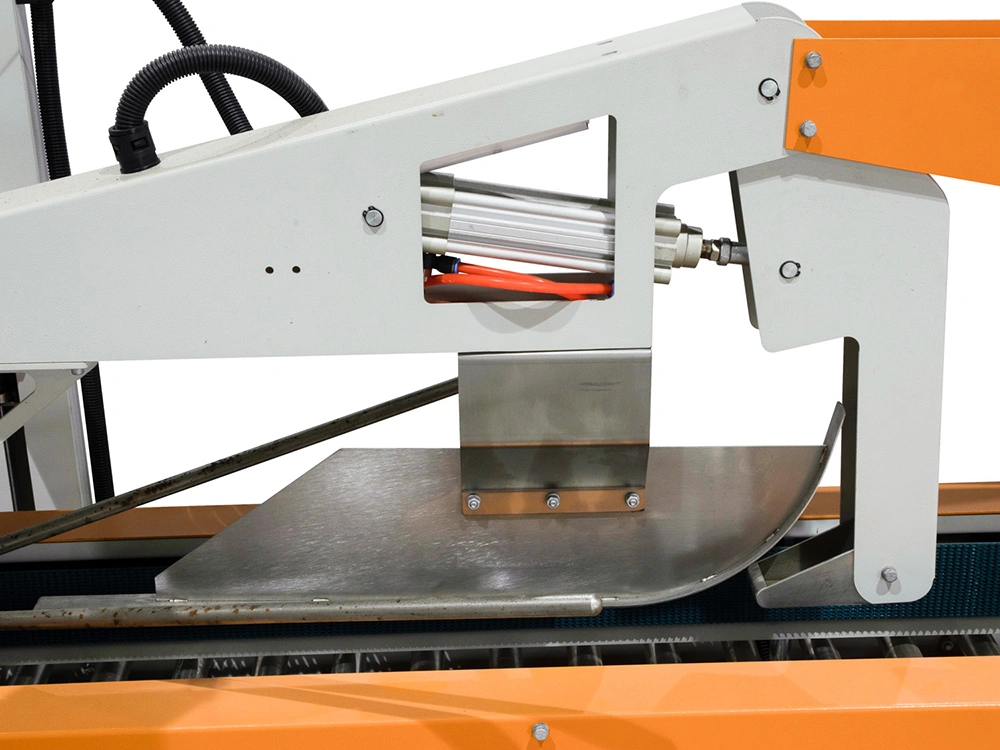

- 3 Front Folding Protector
- 4 Front Folding Rod
- 5 Pneumatic Cylinder
- 6 Carton Discharge Side
- 7 Carton Width Adjustment Lever
- 8 Pressure Gauge
- 9 Caster
| Product name | Automatic flap folding carton sealing machine |
| Conveyor speed | 20m/min |
| Carton size range | L200–600 × W150–500 × H150–500mm, customizable |
| Power supply | 110/220V, 50/60Hz, single-phase |
| Power | 400W |
| Tape size | 48/60/75mm, customizable |
| Air consumption | 50NL/min |
| Air pressure | 0.6MPa |
| Table height | 600 + 150mm |
| Top sealer size | L1770 × W850 × H1520mm, customizable |
| Machine weight | 250kg |
-

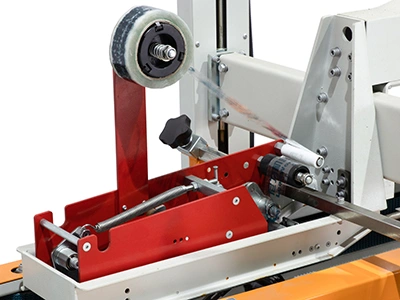

Quick tape loading design
The tape core can be removed easily by holding the tape arm, allowing fast tape installation and simple operation.
-

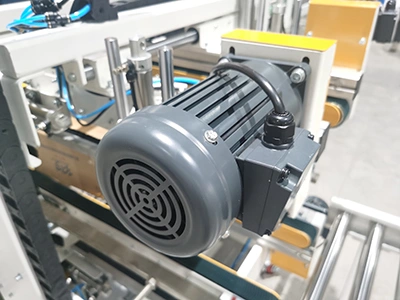

Powerful motor
The case sealer uses a strong motor to support stable and smooth operation.
-
Suitable for large cartons
Designed for large carton sealing applications, with no limit on carton length.
-

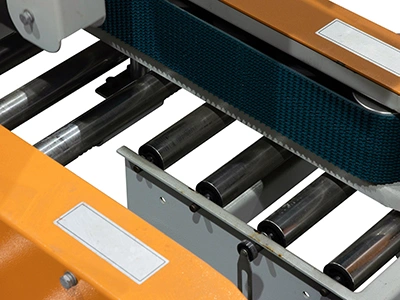

Durable conveyor belt
A thick, wear-resistant conveyor belt with strong friction ensures smooth carton conveying.
-

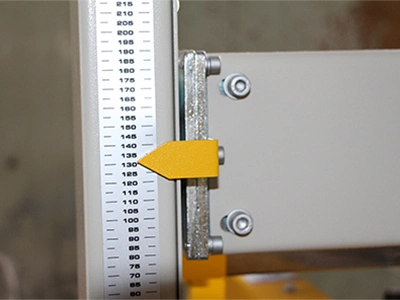

Easy height adjustment
The height ruler design makes adjustment convenient for operators.
