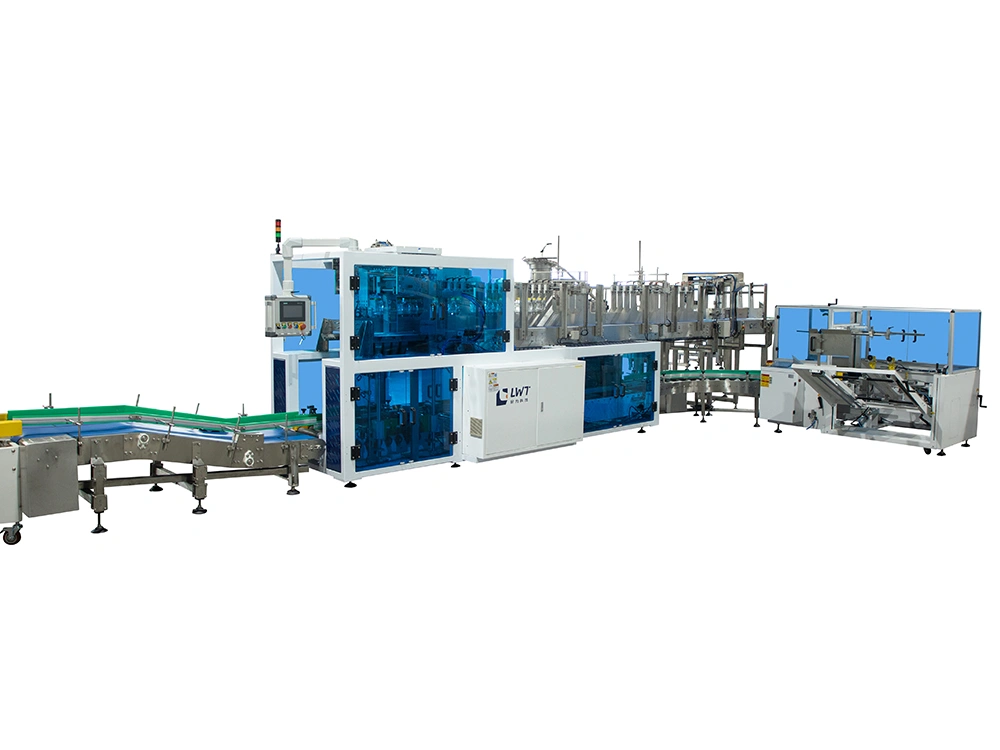

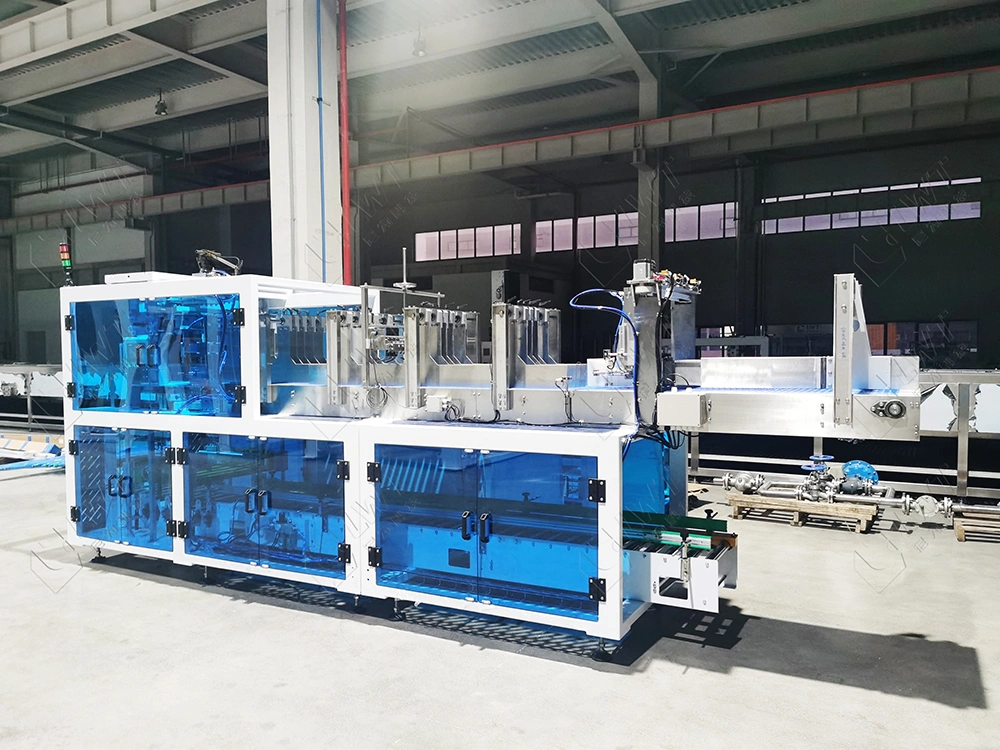

Drop Packer
Automatic case packing machine for bottles, cans & barrels with flexible product compatibility

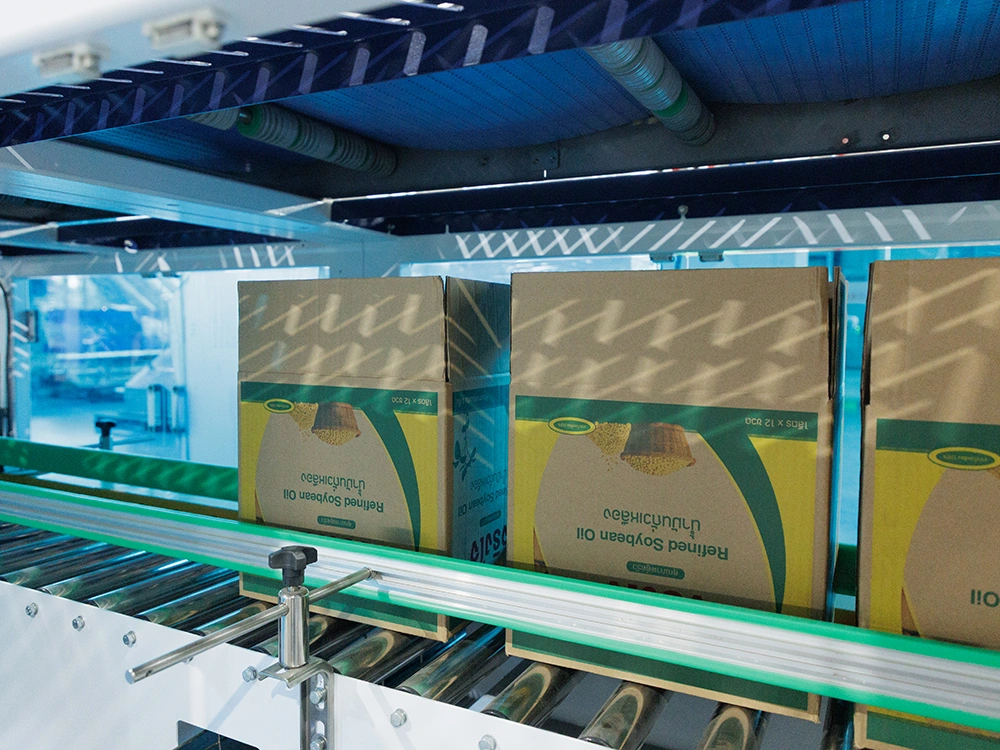

The drop packer automatically arranges products and loads them into cartons according to packaging requirements. After each carton is filled, the packed carton can be transferred automatically to the roller conveyor for connection with an unmanned production line.
With wide product compatibility and a compact footprint, the vertical case packing machine is suitable for automatic case packing of bottled, canned, and barreled products in different specifications.
| Dimensions | L5850 × W1250 × H1730mm |
| Machine weight | 500kg |
| Infeed conveyor height | 1100mm ±50mm |
| Power supply | 3-phase, 380V, 50/60Hz, 3kW |
| Applicable bottle type | PET / PP bottles |
| Air pressure | 6kg/cm², 450ml/min |
| Packing speed | ≤18 cases/min |
| Machine body material | Carbon steel |
Note: Dimensions may vary depending on bottle size and capacity requirements.
-
-
-

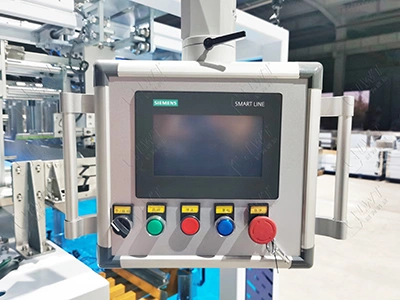

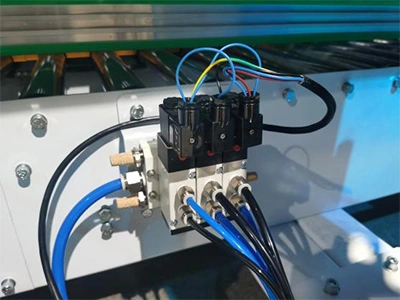

Automatic system control cabinet
The complete system is controlled by Siemens PLC. The Schneider touchscreen interface supports production management and machine status display.
-
-
-

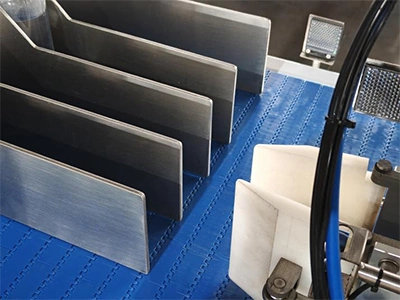

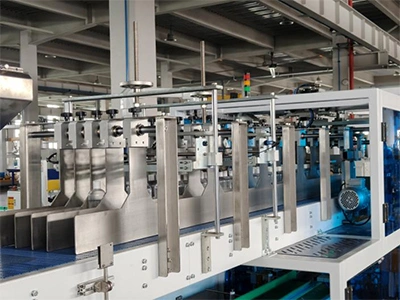

Conveying system
Bottles and cans are separated and inspected on the conveyor for stable product feeding.
-
-
-

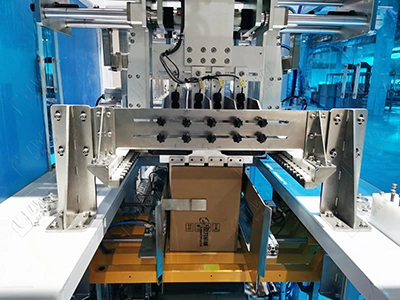

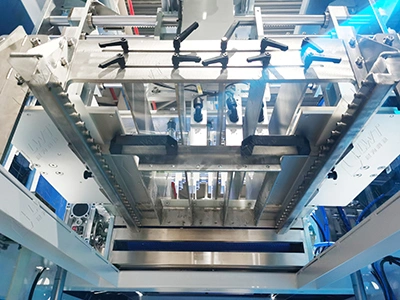

Side carton pressing mechanism
The side panels of the carton are pressed by this mechanism to form the required carton shape.
