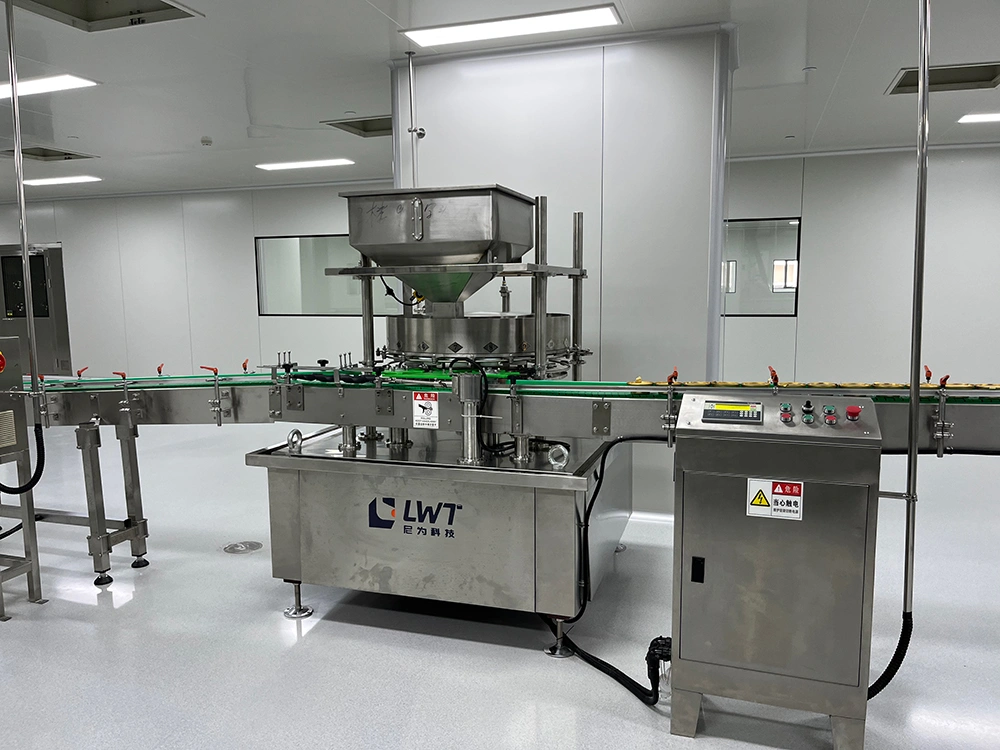

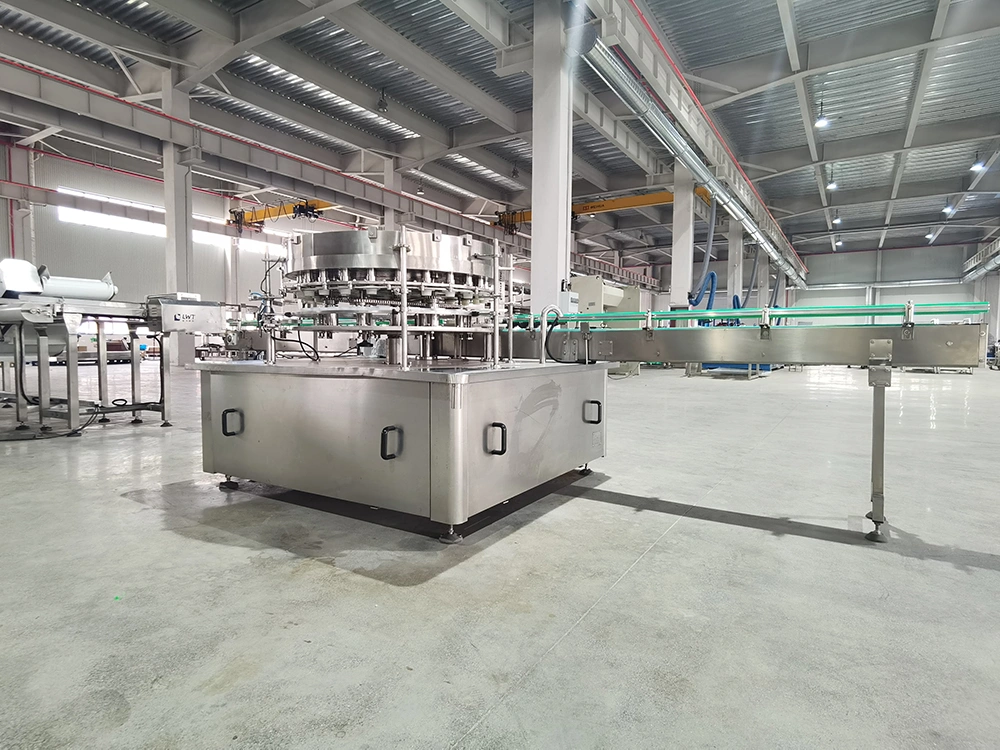

Rotary Filler
Filling processed raw ingredients automatically into cans or jars with precise volumetric control.
Suitable for filling diced materials into cans, the rotary filler is mainly used for vegetables, fruits, corn, red beans, mung beans, kidney beans, chickpeas, peas, diced meat, and similar products.
The filling volume is measured by volumetric cups and can be adjusted according to production requirements. The complete machine is made of stainless steel and equipped with Siemens PLC and Schneider electrical components.

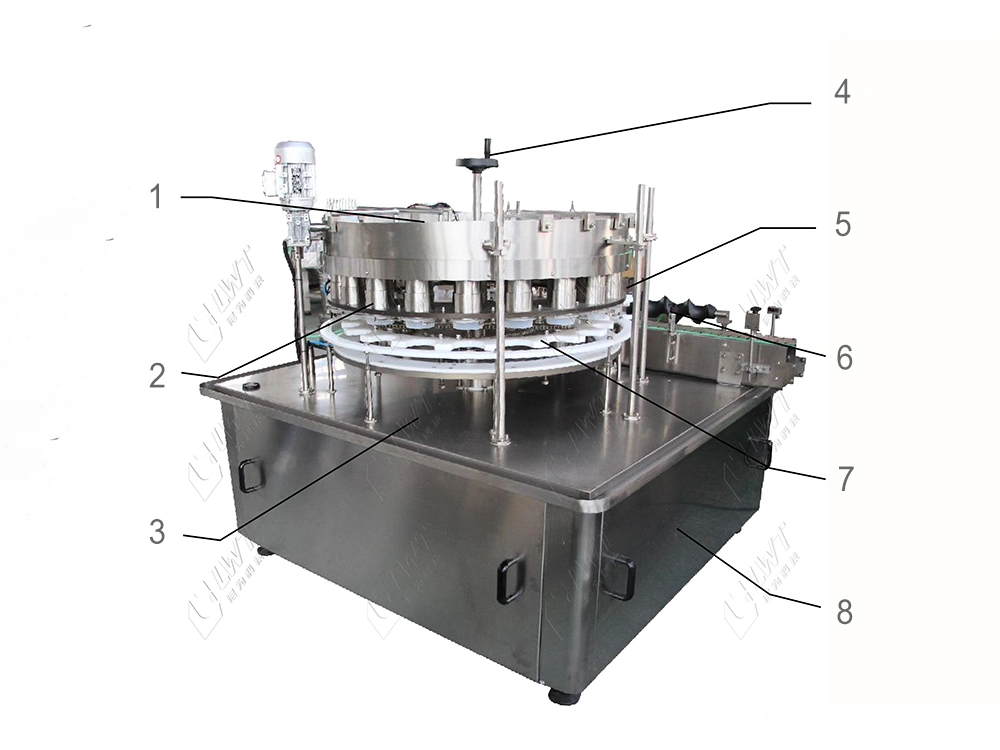

Components

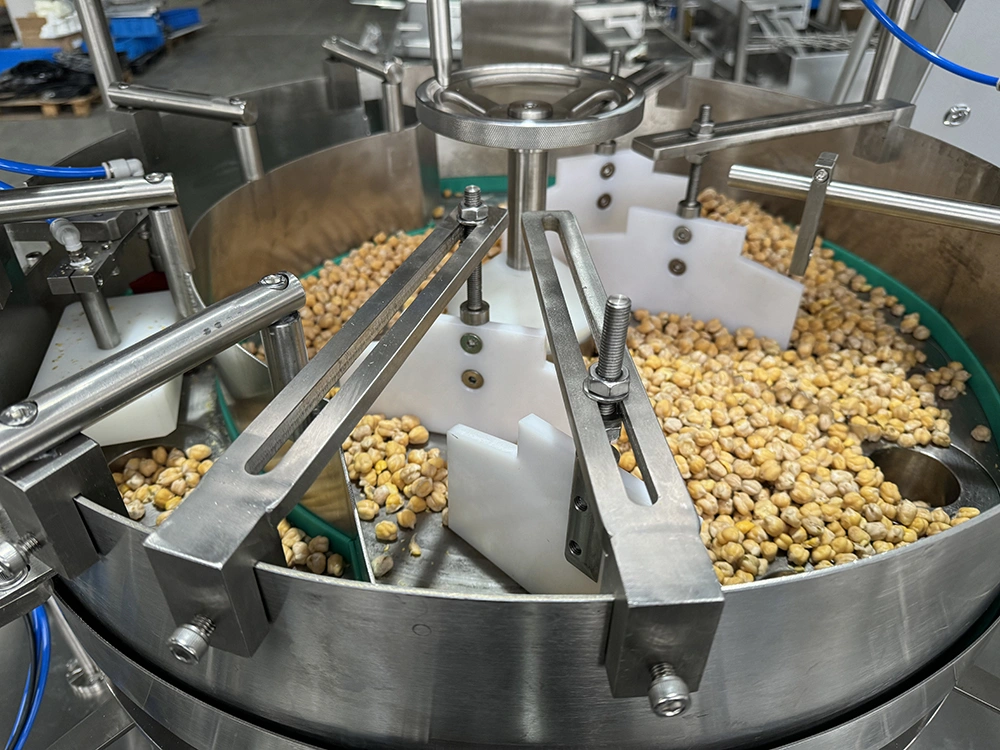

- 1 Feeding Tray

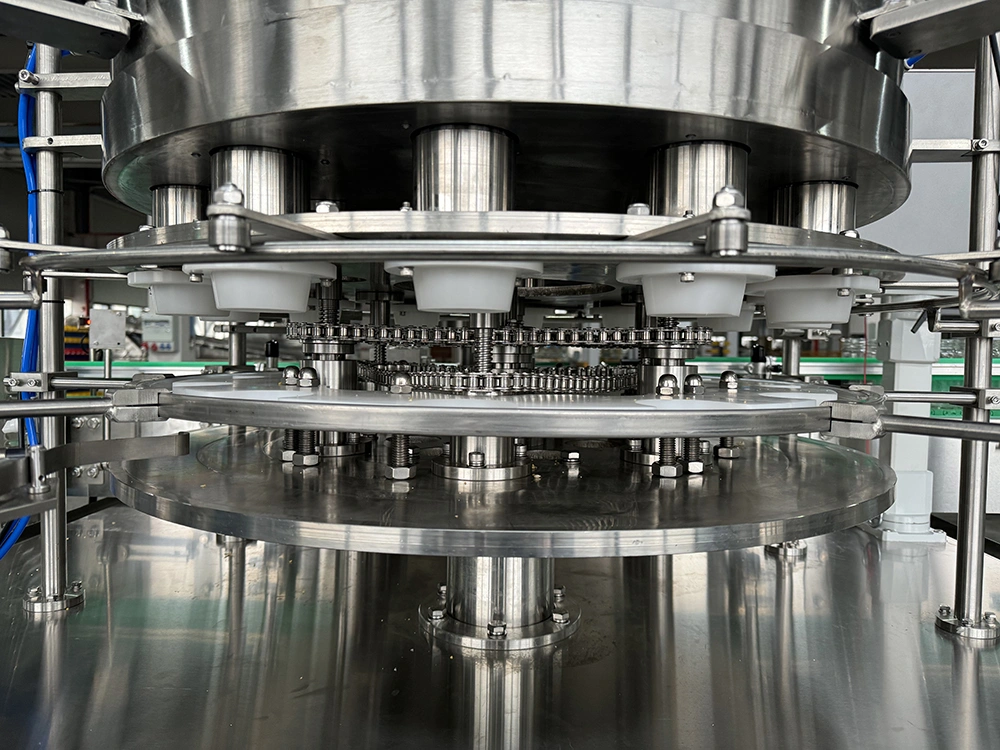

- 2 Measuring Cup Mechanism
- 3 Receiving Platform
- 4 Height Adjustment Unit
- 5 Filling Station
- 6 Screw Bottle Separating Mechanism

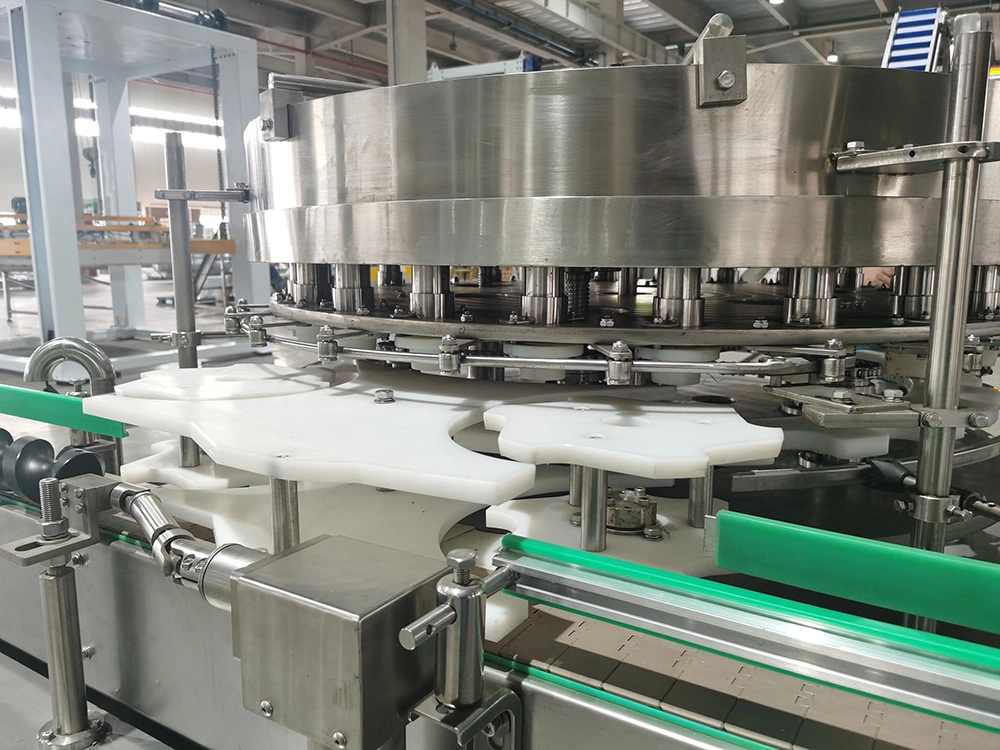

- 7 Star Wheel Turntable

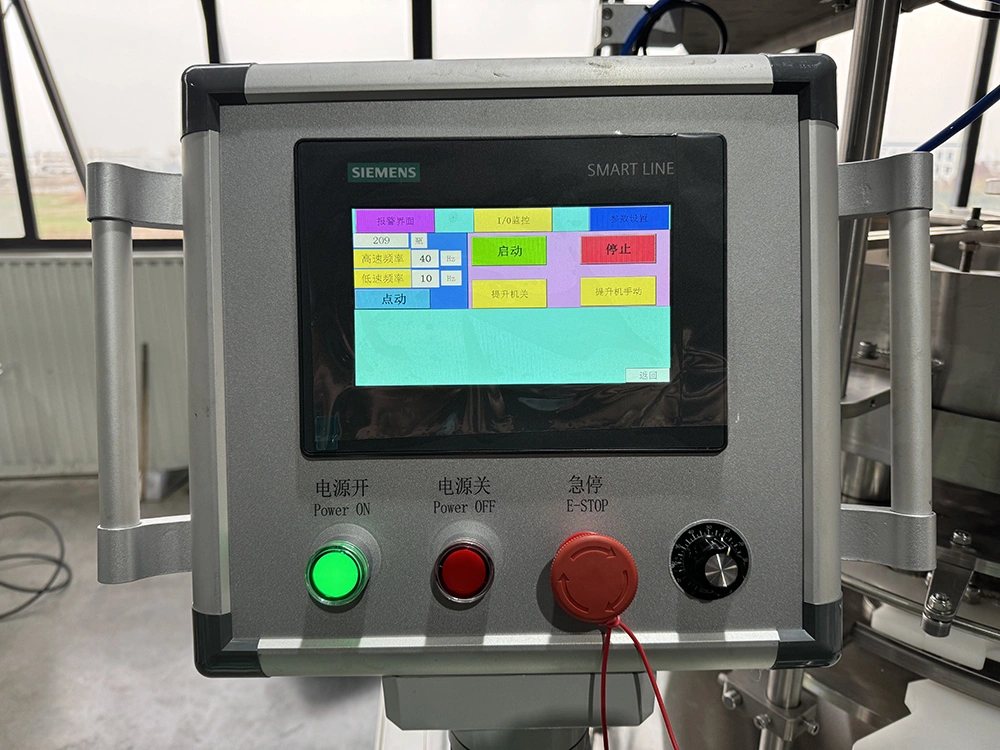

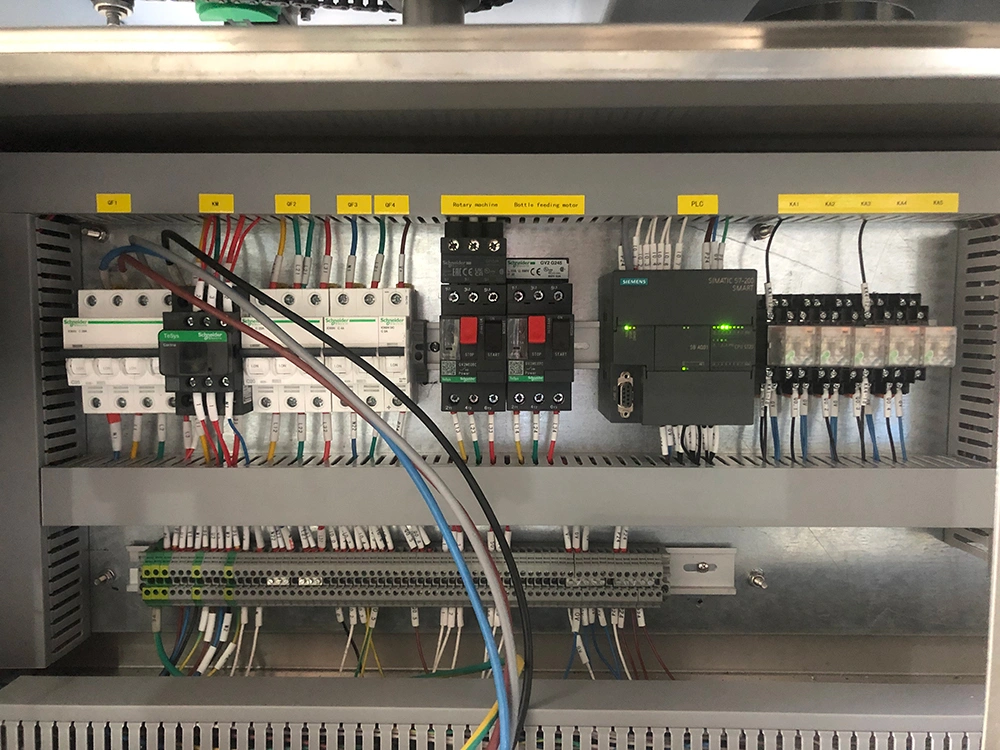

- 8 Electrical Control Panel
Specifications
Applicable Filling Range: 10–60g, 30–100g, 50–250g, 100–500g, 200–1000g, 500–2500 ml, 1000–5000 ml
| Model | |
|
| Filling heads | 24 | 12 |
| Power | 1.5kW, 380V, 50Hz, 3-phase | 1.5kW, 380V, 50Hz, 3-phase |
| Filling speed | 6,000–12,000 BPH | 3,000–6,000 BPH |
| Feeding tray size | 1100 × 120mm | 700 × 150mm |
| Dimensions | 1880 × 1780 × 1600mm; height customized according to bottle height | 1500 × 1400 × 1600mm; height customized according to bottle height |

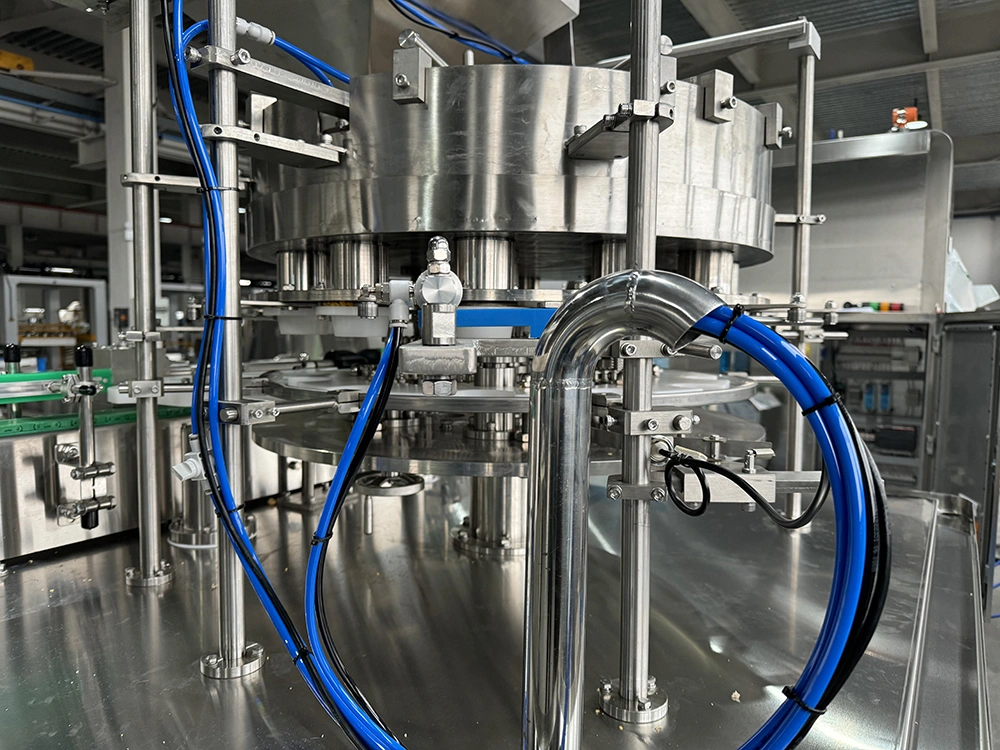

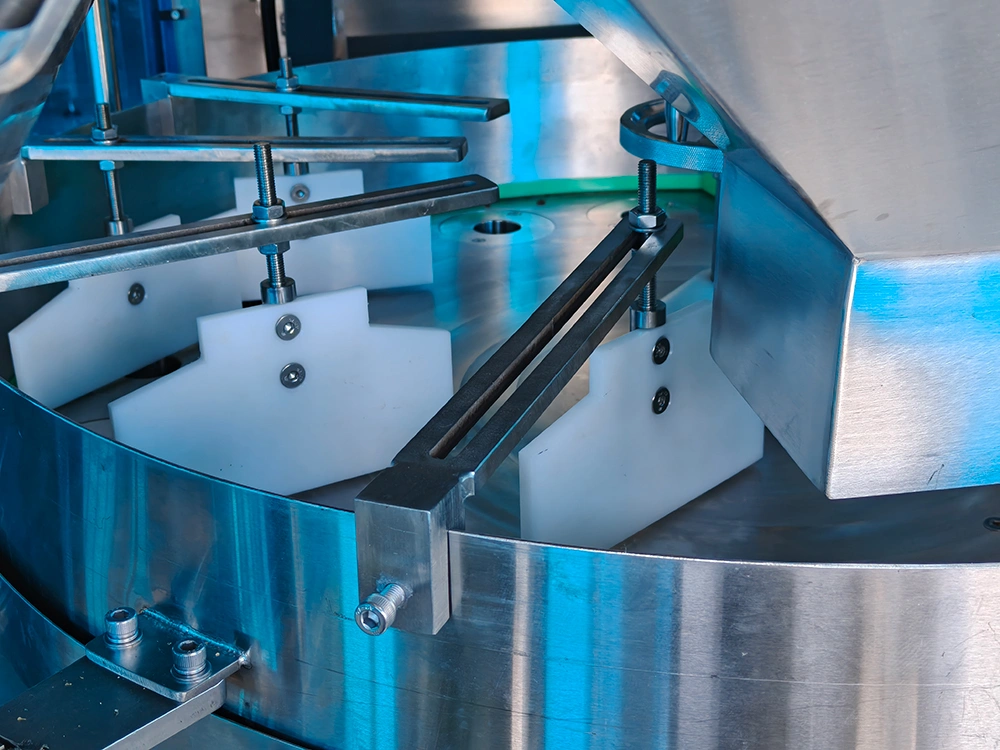

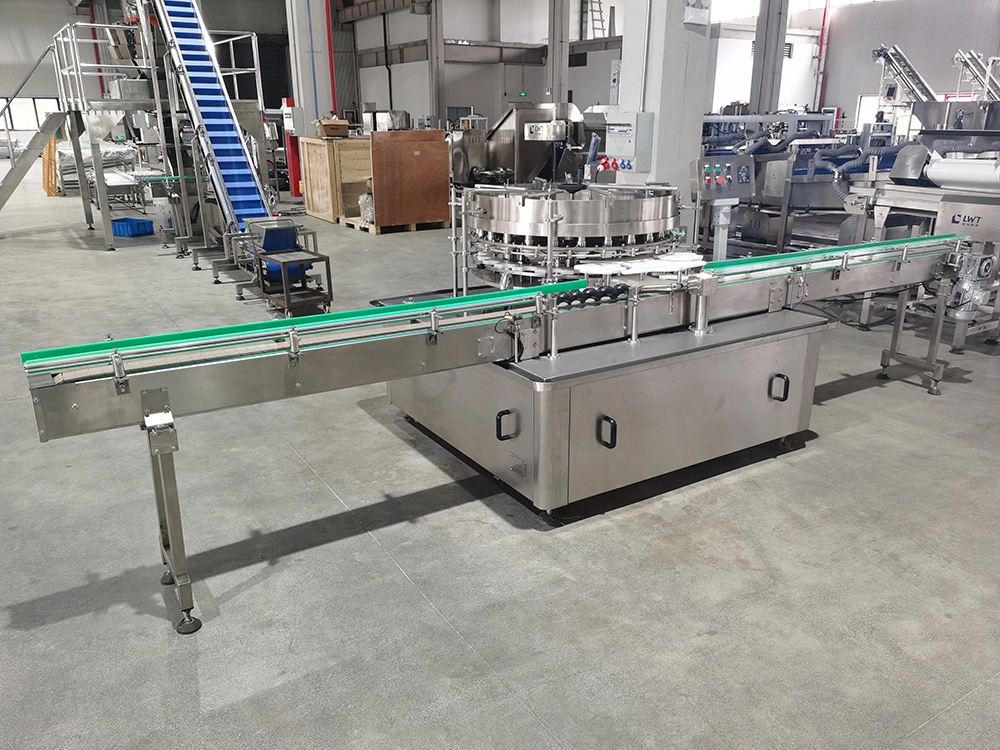

Machine details
